Solvent Recyclers

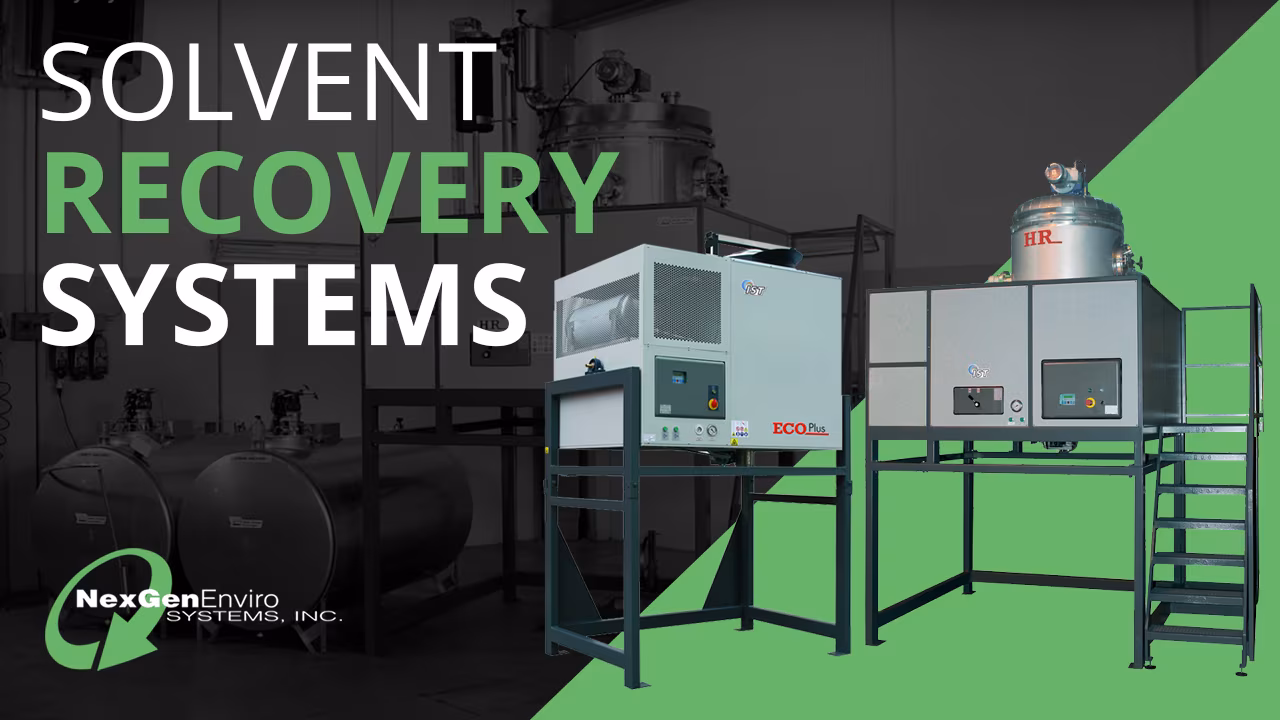

Nex Gen Enviro’s solvent recycler systems can handle the needs of any organization. With systems ranging from a 2.6 gallon batch to continuous models capable of recovering 2,500 gallons a day we offer the broadest range in the industry. These units are Certified to UL 2208 and ATEX II 2G explosion proof standards. Each of our models meets the needs of a variety of industries where solvent recycling is a cost-efficient and time saving way to safely handle solvent operations.

Viewers interested in Recyclers were also interested in Part Washers for all industries. Part Washers


Low Volume Distillation Units

The IST solvent recyclers are available in 2.6, 4, 6.6, 11, and 16 gallon capacities. Certified to UL 2208 and ATEX II 2G explosion proof standards with an 8 bit digital microprocessor controlling all aspects of the cycle, these distillation units personify ease-of-use. The 4-hour cycle time makes the IST models the fastest and most efficient on the market. Their powder-painted, heavy-duty steel construction guarantees the unit’s durability over many years of service in any application. Options such as automatic loading, Teflon coated boiling tanks and vacuum distillation are available. The IST Models are the perfect solvent recyclers for those using small volumes of solvent weekly.

MODEL GALLON VOLUME DIMENSIONS WEIGHT OIL VOLUME WATTS POWER AMPS
IST10 2.6 Gallons 20"L x 28"W x41"H 121 lbs. 1.6 Gallons 1670 230 volt,1 phase 7.5
IST15 4 Gallons 20"L x 28"W x41"H 132 lbs 2 Gallons 1670 230 volt,1 phase 7.5
IST22 6.6 Gallons 24"L x 34"W x43"H 165 lbs. 3.7 Gallons 2,570 230 volt,1 phase 11
IST42 11 Gallons 23"L x 38"W x47"H 220 lbs. 6.3 Gallons 3,200 230 volt, 1 phase 14.5
IST62 16 Gallons 24"L x 38"W x47"H 253 lbs 7.4 Gallons 4,500 460 volt, 3 phase 6

Contact us

Viewers interested in Recyclers were also interested in Part Washers for all industries. Part Washers


Medium Volume Distillation Units

Medium volume solvent distillation units available in 24, 37 and 53 gallon capacities. PLC controlled automated cycle. Features include auto load, residual unload, vacuum assist, and Teflon coated distillation tanks. Certified to UL 2208 and ATEX II 2G explosion proof standards. These sturdy solvent distillation units represent the bridge between the medium volume user and the large scale needs of a high volume operation. The Digit models offer more automation with auto load and level control systems. A manually operated discharge of the waste product is available as an option for multiple runs.

MODEL GALLON VOLUME DIMENSIONS WEIGHT OIL VOLUME WATTS POWER AMPS
90DIGIT 24 Gallons 36"Lx43"Wx67"H 539 lbs. 10 Gallons 8,000 460 volt, 3 phase 10
122DIGIT 37 Gallons 60"Lx36"Wx65"H 748 lbs. 11 Gallons 13,000 460 volt, 3 phase 15
202DIGIT 53 Gallons 60"Lx36"Wx65"H 800 lbs. 15 Gallons 15,000 460 volt, 3 phase 19

Contact us


High Volume Distillation Units

The ECOPLUS models, available in 37, 53, and 105 gallon capacities are ideal for medium to large operations. Designed to operate directly from drums or totes, the ECOPLUS provides high productivity with low worker interventions. With a conical shaped boiling tank, automatic loading system and automatic waste unload, these units exhibit virtually hands-free operation. These models can be equipped with a scraper system to process high solid percentage waste streams. Optional liquid ring vacuum generators enable the distillation of high boiling solvents. Certified to UL 2208 and ATEX II 2G explosion proof standards, the ECOPLUS models are the cutting edge of safety and technology.

MODEL GALLON VOLUME DIMENSIONS WEIGHT OIL VOLUME WATTS POWER AMPS
ECOPLUS122 37 Gallons 75"Lx44"W x112"H 1345lbs 12 Gallons 10,000 460 volt, 3 phase 12
ECOPLUS202 53 Gallons 75"Lx44"Wx114"H 1345lbs 16 Gallons 13,000 460 volt, 3 phase 16
ECOPLUS400 105 Gallons 83"Lx55"Wx124"H 1958lbs 32 Gallons 24,000 460 volt, 3 phase 29
HR600 153 Gallons 196"Lx81"Wx146"H 6450lbs 40 Gallons 47,000 460 volt, 3 phase 58

Contact us

Viewers interested in Recyclers were also interested in Part Washers for all industries. Part Washers


Continuous Volume Distillation Units

The Continuous Model solvent recyclers are designed utilizing the standard ECOPLUS processors with advanced automation. Their purpose is to offer companies inline solvent recovery with total automation. These units are meant to plug into existing industrial operations accepting waste via piping directly to holding tanks and continually feeding clean product back to the process system. Even the waste unload is automated to allow hands-free cycling of the equipment. Certified to UL 2208 and ATEX II 2G explosion proof standards, these systems are the ultimate solution for high volume users requiring inline recycling of solvent waste products in any industry.

MODEL GALLON VOLUME DIMENSIONS WEIGHT OIL VOLUME WATTS POWER AMPS
CONTINUOUS 122 37 Gallons 75"Lx44"Wx112"H 1345lbs 12 Gallons 10,000 460 volt ,3 phase 12
CONTINUOUS 202 53 Gallons 75"Lx44"W x114"H 1345lbs 16 Gallons 13,000 460 volt, 3 phase 16
CONTINUOUS 400 105 Gallons 83"Lx55"Wx124"H 1958lbs 32 Gallons 24,000 460 volt, 3 phase 29
HR600 153 Gallons 107"Lx81"Wx146"H 5676lbs 40 Gallons 47,000 460 volt, 3 phase 58
